TIF: Text Interface Card

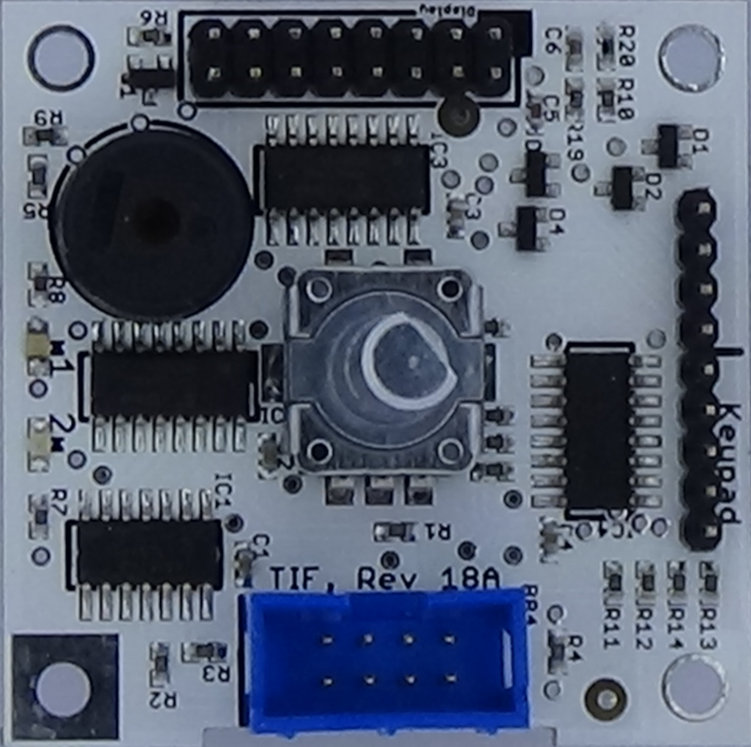

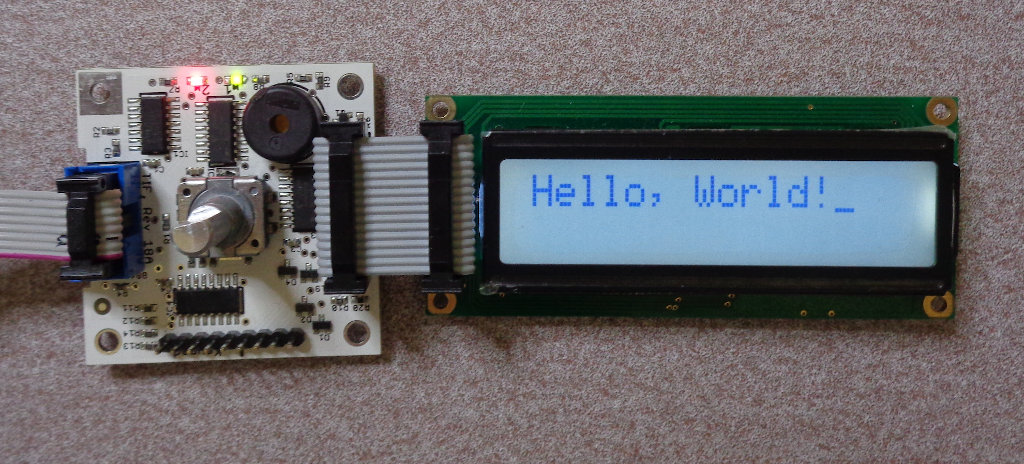

The Text Interface card (TIF) has the basic user interface elements needed by robots or other automation. The card itself has two LEDs, a rotary encoder with push button, and a piezo beeper. It also has connectors for a 4x5 keypad and 2 line text display which are mounted externally to the card.



Features:
- Two LEDs, piezo beeper, and a rotary encoder
- Connectors for a four-by-five keypad
- Connectors for character LCD module
- User space Linux device driver (part of dpdaemon)
- Uses the ESPI 7474 circuit for reliable operation
- Requires one slot on a Baseboard FPGA card



Hardware:

All of the user interface elements on the TIF connect to the FPGA over a 16-bit output shift register and an 8-bit input shift register. The shift registers are clocked using the ESPI quadrature clock scheme for reliable operation over ribbon cable.

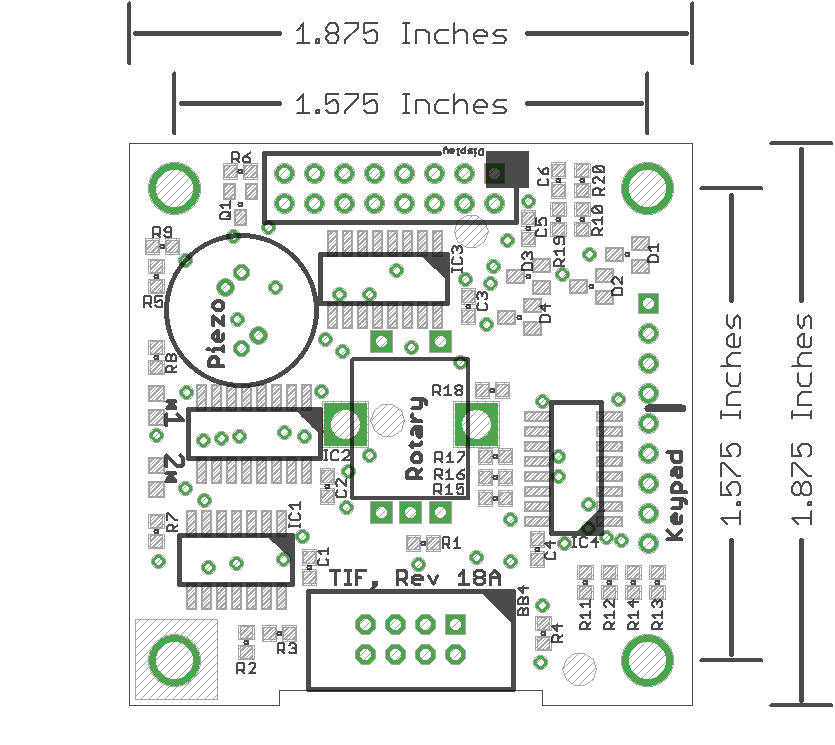

The schematic and layout of the TIF are shown below. The Eagle schematic and board files are available here: tif.sch and tif.brd. The bill-of-materials is available here: tif.txt.
