SLIDER4: Quad Slide Potentiometer Card

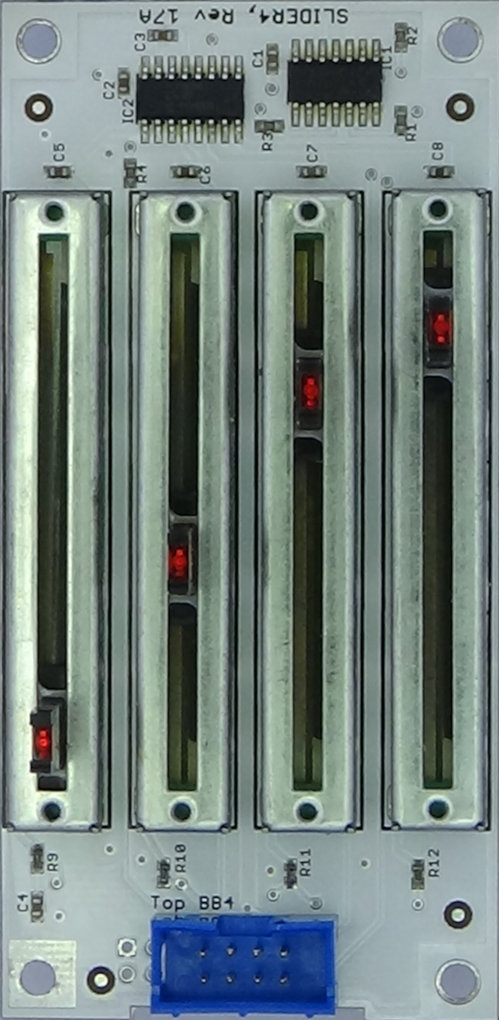

The SLIDER4 Quad Slide Potentiometer Card has four slide pots each with a red LED in the tip of the slider. Slider positions are reported to the host with 10 bits of resolution.



Features:
- Four slide pots with 10 bits of accuracy
- Pot spacing lets you cascade multiple cards
- Uses the ESPI 7474 circuit for reliable operation
- Optional back mounted connector
- Requires one slot on a Baseboard FPGA card



Hardware:

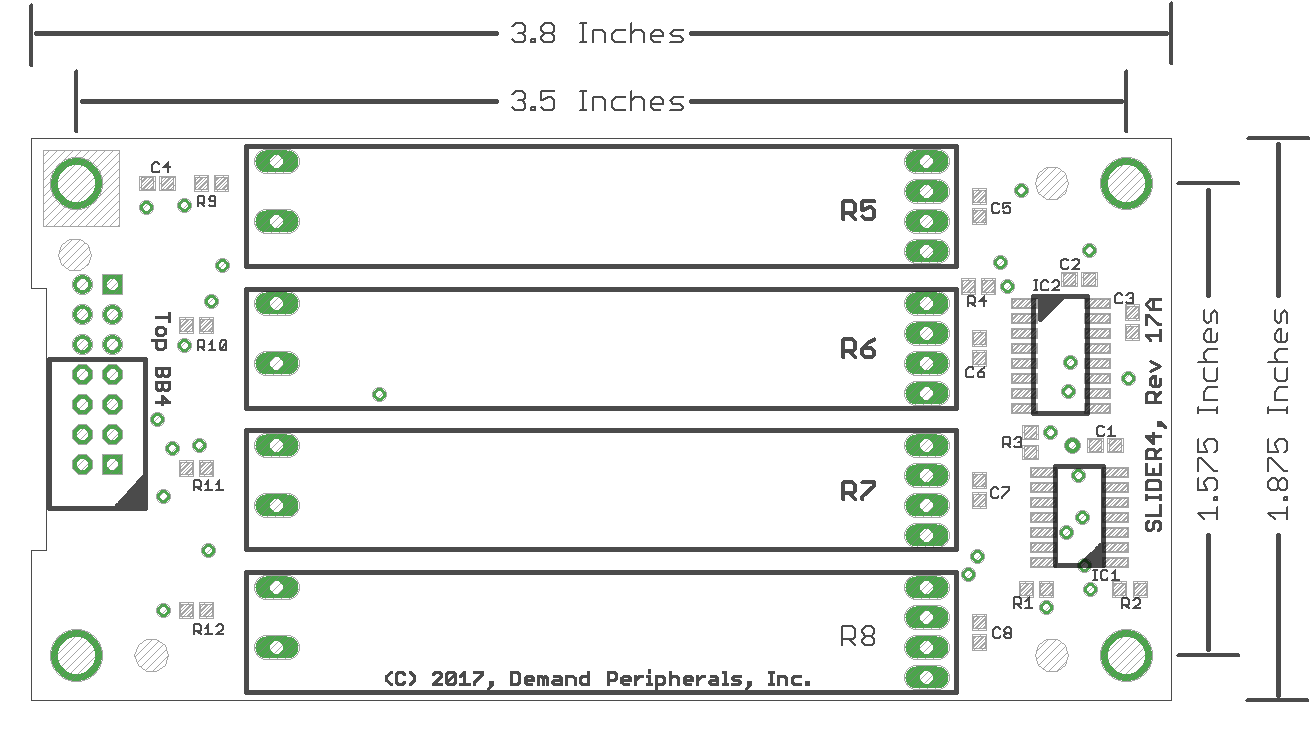

t The schematic and layout of the slider4 are shown below. The Eagle schematic and board files available here: slider4.sch and slider4.brd. The bill-of-materials is available here: slider4.txt.
