OUT32: 32 Channel Binary Output Card

The OUT32 card has thirty-two 3.3 Volt binary outputs. Each output goes to pin 1 of a 3-pin header. The other two pins on the 3-pin header are tied to screw terminals.



Features:
- Thirty-two 3.3 Volt binary outputs
- 3-pin header per output
- Uses the ESPI 7474 circuit for reliable operation



Hardware:

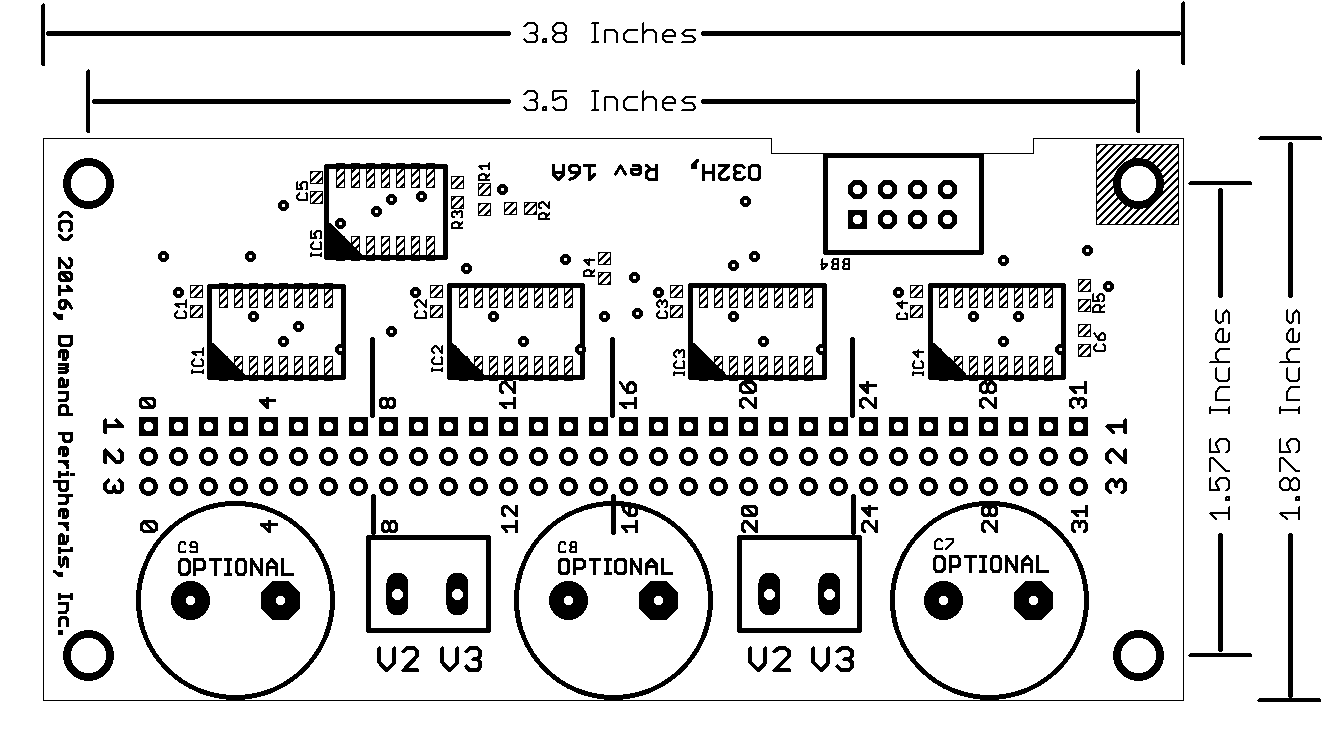

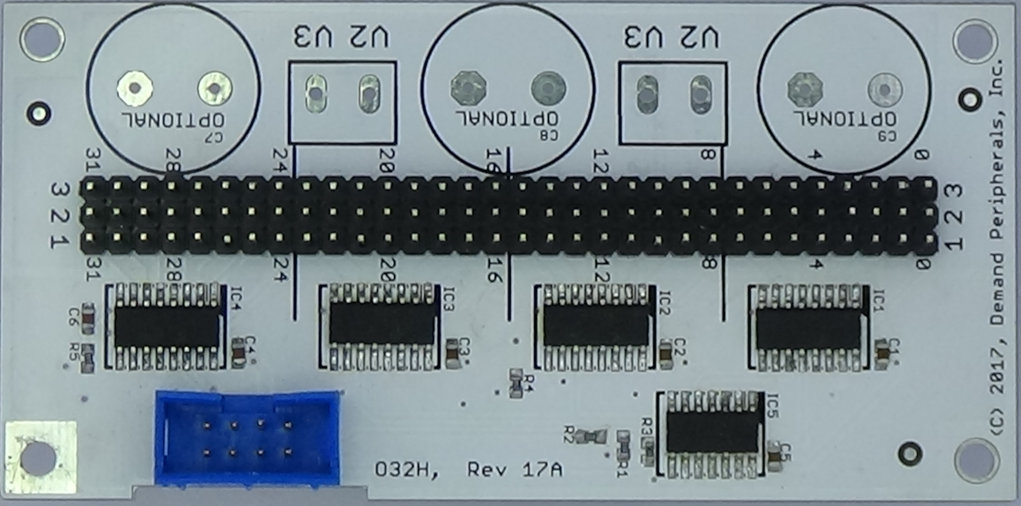

The schematic and layout of the OUT32 are shown below. The Eagle schematic and board files are available here: out32.sch and out32.brd. The bill-of-materials is available here: out32.txt.
