IO8: Octal Input, Octal Output Card

The IO8 card has eight inputs and eight outputs. The output is at 3.3 Volts and the input can be at 3.3 or 5 Volts.



Features:
- Eight binary inputs and eight binary outputs
- 3.3 or 5 Volt input
- 3.3 Volt output
- Convenient screw terminal connections
- Uses the ESPI 7474 circuit for reliable operation



Hardware:

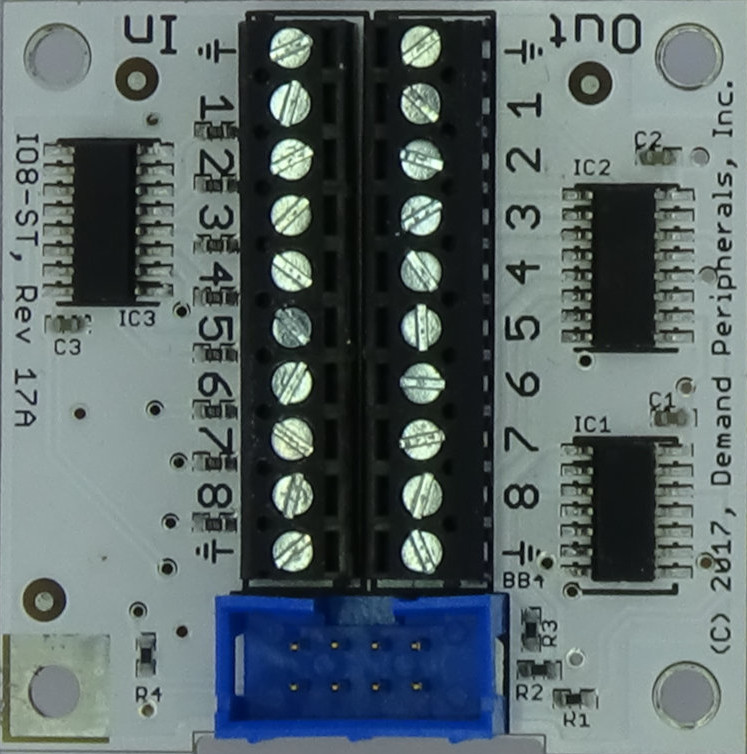

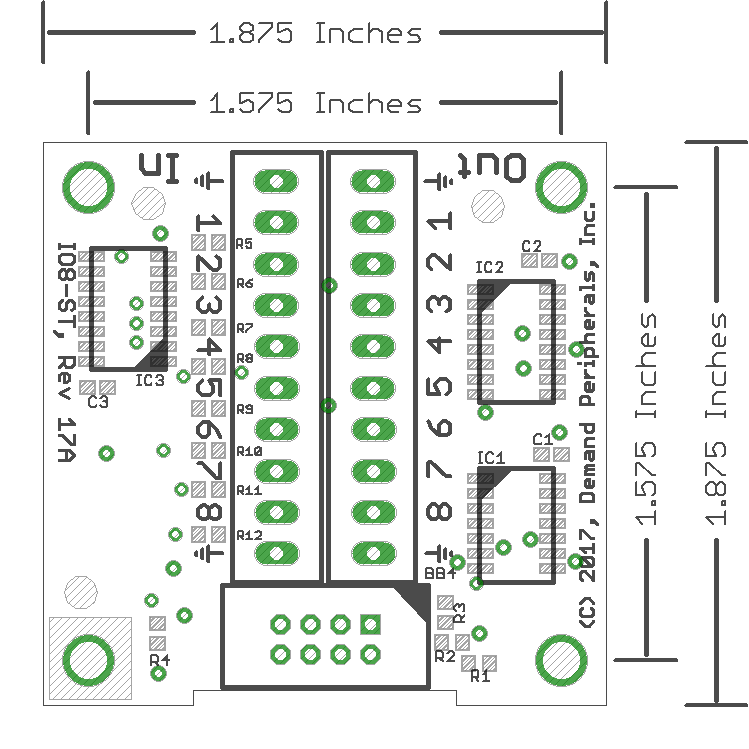

The schematic and layout of the IO8 are shown below. The Eagle schematic and board files are available here: io8.sch and io8.brd. The bill-of-materials is available here: io8.txt.
